Industrial Component · Mold & Production Case Study
Precision C-Clip Mold & 100,000-Part Production
How a compact industrial pipe clip moved from thermal and material review through mold manufacturing, two-material trials and stable volume molding.
Customer identity and commercial details have been intentionally anonymized.
Project Overview
A small component with material, fit and temperature requirements
The clip was intended for an industrial pipe assembly operating at approximately 70°C. Because the geometry was compact and the order volume was 100,000 pieces, material shrinkage, gripping dimensions and repeatable release had to be resolved before volume production.
The Approval Logic
Four questions controlled the production decision
For this project, the important story is not a generic tooling sequence. It is how application, material, shrinkage and functional fit were resolved before committing to 100,000 parts.
The working environment was approximately 70°C.
The clip had to install without cracking and retain the pipe.
Filled and pure PP produced visibly different shrinkage.
The pure white PP version was selected for production.
Material & Mold Engineering
The trial plan answered the decision the buyer actually needed to make
- Application: industrial pipe retention in an approximately 70°C environment.
- Geometry: 20 mm-class outer profile with a compact gripping section.
- Material route: filled PP and pure PP molded under controlled conditions.
- Decision point: compare appearance, shrinkage and functional fit.
- Final selection: pure white PP approved for the production run.
- Traceability: machining, sampling, molding and packing evidence shared by stage.
Tooling & Manufacturing
A gated workflow from steel cutting to approved volume production
Production did not begin immediately after the tool was finished. The mold first passed an engineering trial, two sample variants were reviewed, and only the approved material and corresponding dimensions moved into the 100,000-piece run.
- 01Requirement review
Application temperature, nominal dimensions, quantity and functional expectations were confirmed.

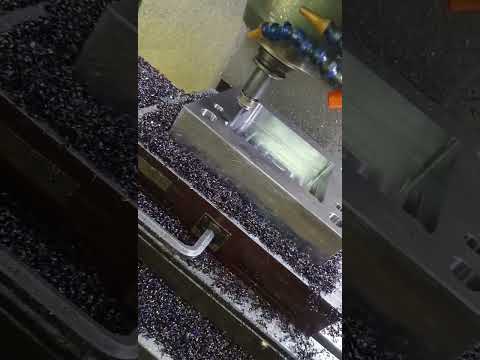

- 02Mold manufacturing
Tool progress was documented while the core, cavity and release features were machined and fitted.
- 03Two-material trial
Filled-masterbatch and pure PP samples were molded for a direct customer comparison.
- 04Sample approval
The pure white PP version was selected as the reference for mass production.
- 05Production & dispatch
The approved process was used for 100,000 parts, packed into ten production cartons.
Original Project Videos · Restored
Three videos document the mold, sample trial and production stages
These are the original videos that appeared on the earlier case page. They are retained as primary project evidence rather than replaced by decorative imagery.
Trial & Production Evidence
Material approval was carried through to the packed production lot
The project record links the customer’s material decision to the mold trial, the running production process and the finished cartons prepared for international delivery.
Grip dimensions
Clip recovery
Surface appearance
Lot consistency
Packing count
Project Outcome
One approved material route, one controlled 100,000-piece run
The customer compared real molded samples instead of selecting material from a data sheet alone. The pure PP version was approved, produced to the validated settings and delivered as a complete production lot.
Verified Customer Feedback · Anonymized
Thank you, they really look nice.
Industrial components buyer · Email feedback during molded-sample review
Physical sample comparison before committing to volume production
The buyer requested both PP variants because of the tight tolerance, selected the preferred route after inspection and moved forward with the controlled 100,000-piece run.
